FEATURES

  • Analogue bassdrum circuitry capable of vanilla TR-808 sounds
  • Built in voltage controlled distortion (batteryACID distortion)
  • Distortion accepts external inputs when not being used with kick drum (great for acid synth leads)
  • Voltage control of distortion amount
  • Voltage control of decay from short kicks to long "ooooooooomphs"
  • Voltage control of pitch (approximates v/oct response, but not musically tuned)
  • Non-invasive analogue optocouplers used for voltage control, thus, completely vintage sounds can still be had if that's what you're after!
  • Completely redesigned, hi-fi signal chain spares no expense by replacing cheap transistor amplifiers with low noise opamp equivalents
  • You can dial in super hot, modular level output levels (up to 20Vp-p!)

What do you get when you combine voltage controlled distortion and one of the most infamous bassdrums? We took one of the most revered bassdrum synthesis designs of all time and completely redesigned it for use in a modular analogue synthesizer!



AUDIO AND VIDEO DATA

Legendary techno artist SURGEON using the Mutant Drums live...


DIY PROJECT DATA

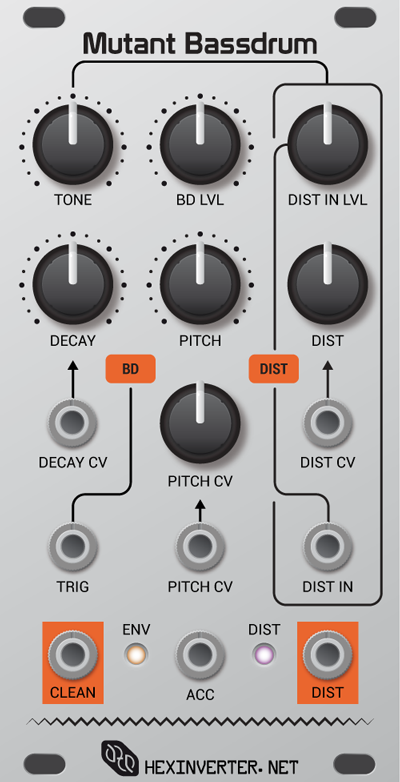

The Mutant Bassdrum DIY project is available as a partial kit which includes the PCB set, 13HP eurorack panel, and rare parts (3 vactrols and the long pin headers needed to complete the build). THIS IS AN ADVANCED DIY PROJECT AND WILL REQUIRE ASSEMBLY! (The module photo below is of the completed product: not what you will receive!)



DIY Resources

>> [pdf] DIY MANUAL
>> [link] DIY BILL OF MATERIALS
